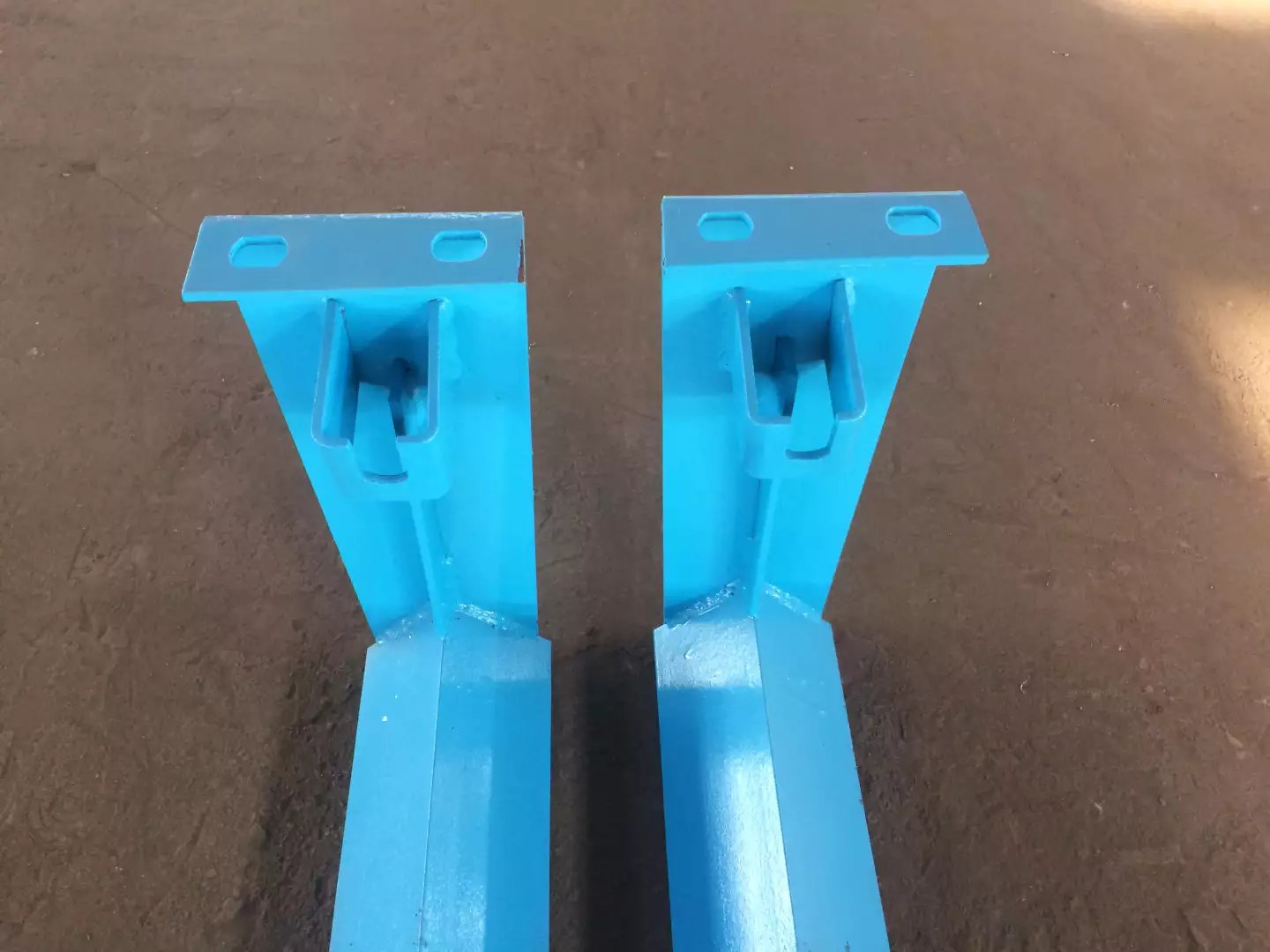

V-Return Frame
Product Details
Product Name: V-Return Frame
Product ID: 2.4
Register Date: October 25, 2016
Category: Conveyor Frame
Application
The products are widely used in coal mines, metallurgy, machinery, ports, construction, electricity, chemistry, food packing and other industries.
Features
- High accurate steel material Q235
- Lift time: more than 30000hours.
- Production capacity: as usual 500pieces/day.
- Roller Diameter: 60-219mm.
- Roller Length: 190mm to 3500mm.
- Finish: Painting/Galvanized.
- Welding: mixed gas shielded arc welding end.
- Professional designing and inspection team.
- Standard: GB/ISO/BS/JIS/DIN/CEMA/Australia.
- Package: Standard export standard plywood cases with waterproofing film.
Contact us for availablity
Specifications
| Belt Width | Side Branch Thickness | Medium Counts Thickness | Beam Modal | Bottom Plate Thickness |
|---|---|---|---|---|
| mm | mm | mm | mm | |
| B500 | 2.75 | 2.75 | 63*5 | 5 |
| B650 | 2.75 | 2.75 | 63*5 | 5 |
| B800 | 2.75 | 2.75 | 63*5 | 5 |
| B1000 | 3.75 | 3.75 | 75*6 | 6 |
| B1200 | 3.75 | 3.75 | 100*8 | 8 |
| B1400 | 3.75 | 3.75 | 100*8 | 8 |
(We can customize the size according to the customer’s requirement.)
