Friction Aligning Return Frame

Product Details

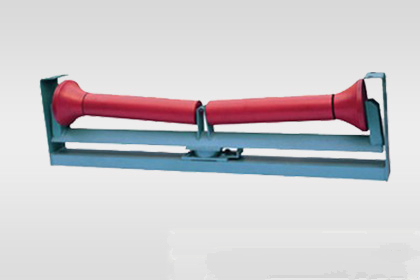

Product Name: Friction Aligning Return Frame

Product ID: 2.8

Register Date: October 26, 2016

Category: Conveyor Frame


The products are widely used in coal mines, metallurgy, machinery, ports, construction, electricity, chemistry, food packing and other industries.


  1. High accurate steel material Q235
  2. Lift time: more than 30000hours.
  3. Production capacity: as usual 500pieces/day.
  4. Roller Diameter: 60-219mm.
  5. Roller Length: 190mm to 3500mm.
  6. Finish: Painting/Galvanized.
  7. Welding: mixed gas shielded arc welding end.
  8. Professional designing and inspection team.
  9. Standard: GB/ISO/BS/JIS/DIN/CEMA/Australia.
  10. Package: Standard export standard plywood cases with waterproofing film.

Contact us for availablity


Belt Width Side Branch Thickness Medium Counts Thickness Beam Modal Bottom Plate Thickness
mm mm mm mm
B500 2.75 2.75 63*5 5
B650 2.75 2.75 63*5 5
B800 2.75 2.75 63*5 5
B1000 3.75 3.75 75*6 6
B1200 3.75 3.75 100*8 8
B1400 3.75 3.75 100*8 8

(We can customize the size according to the customer’s requirement.)
