HDPE Roller

Product Details

Product Name: HDPE Roller

Product ID: 1.4

Register Date: October 17, 2016

Category: Conveyor Idler & Roller

Features

Product Performance

HDPE Plastic rollers has physical and chemical properties which are high wear resistance, low friction coefficient, not easy to wear leather strap. It also has the fine self-lubrication and not easy to card to die in the bad conditions, antistatic, flame retardant, aging resistance, corrosion resistance. It can withstand repeated impact, vibration, mechanical performance is excellent, light weight, easy installation, no maintenance, low noise(3-7DB), smooth operation. The temperature of using keep in -40°C to-85°C.

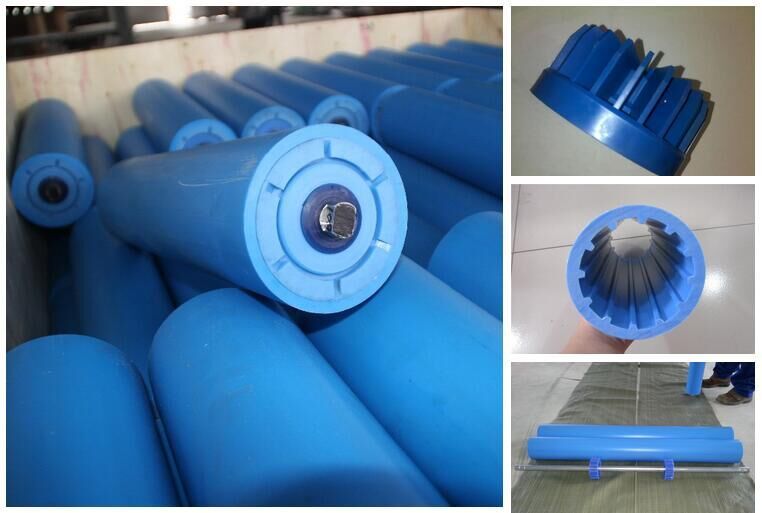

  1. HDPE pipe with Reinforced Skeleton
  2. Light Weight for Power Saving and Worker Safety
  3. Smooth, Noiseless operation
  4. Anti-Alkaline/Anti-Acidic/Anti-Static Formulation
  5. Suitable for Corrosion Environment
  6. Recyclable

Technical Parameters

SN Item Unit Index
1 Radial circular run-out mm ≤0.50
2 Axial drifting mm ≤0.70
3 Rotation resistance N ≤2.50
4 After-falling off axial displacement mm ≤1.50
5 After-falling off rotation resistance N ≤3.75

Contact us for availablity

Specifications

Diameter Length (customized) Bearing (HRB, FAG, SKF) Pipe Thickness
Φ89 150-2000 6204 / 6205 8-15
Φ102 150-2000 6204 / 6205 / 6305 8-15
Φ108 150-2000 6204 / 6205 / 6305 / 6306 8-15
Φ114 150-2000 6204 / 6205 / 6305 / 6306 8-15
Φ127 150-2000 6204 / 6205 / 6207 / 6305 / 6306 8-15
Φ133 150-2000 6204 / 6205 / 6207 / 6305 / 6306 8-15
Φ159 150-2000 6204 / 6205 / 6207 / 6305 / 6306 / 6307 / 6308 8-15

(We can customize the size and thickness according to the customer’s requirements.)
