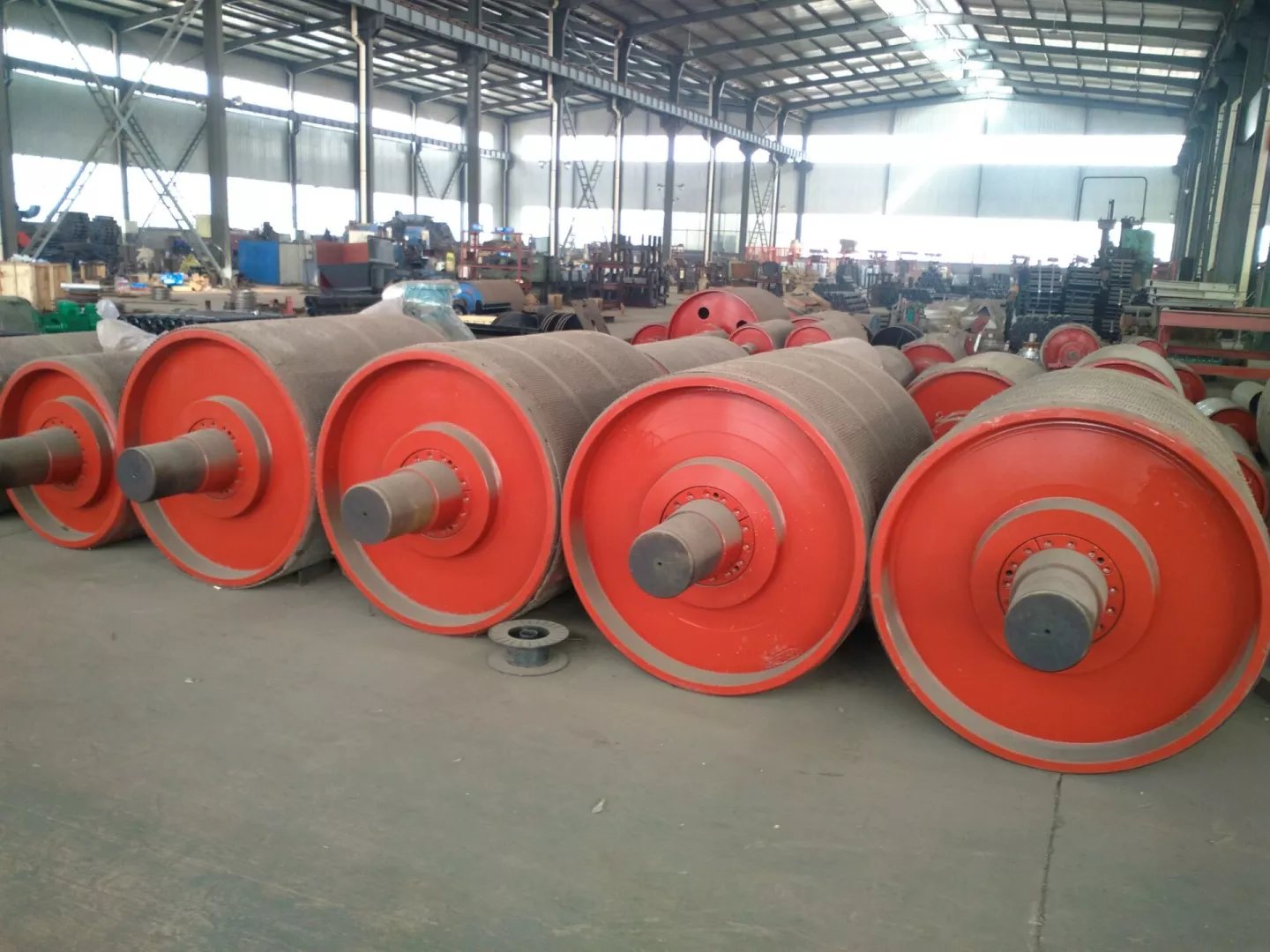

Driving Pulley

Product Details

Product Name: Driving Pulley

Product ID: 3.1

Register Date: December 31, 2011

Category: Conveyor Pulley

Features

Belt conveyor pulley:

  1. Pulley component: Pulley skin, shaft, hub, bearing, bearing housing.
  2. Steel pulley’s size depends on the detailed belt width, the structure can be according to our design or the customers’ requirements, which are used in the steel industry, harbor, coal industry, power industry, cement industry, etc.
  3. Tube: Q235.
  4. Shaft: 45# STEEL.
  5. Bearing: Single & Double Row Deep Groove Ball Bearing 2RZ&2Z with C3 clearance.
  6. Seals: Grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal.
  7. Lubrication: Grease is Lithium soap type grease with Rust Inhibitors.
  8. Welding: Mixed gas shielded arc welding end.
  9. Painting: ordinary painting, hot galvanized painting, electric static spraying painting, baked painting.

Advantage:

  1. The life time: more than 30000 hours
  2. Samples for testing are available.
  3. The more relaxed payment terms.

Contact us for availablity

Specifications

Type Belt width Standard Diameter Length
(mm) (mm) (mm)
 Driving Pulley 500 500 Length of the pulley depends
on the belt width of the conveyor
650 500~630
800 630~1000
1000 800~1150
1200 800~1150
1400 1000~1350
1600 1150~1600
1800 1150~1800
2000 1350~2000
2200 1600~2200
2400 1800~2400
Turnaround Pully 500 250~500
650 250~630
800 250~1000
1000 250~1600
1200 250~1600
1400 315~1600
1600 400~1600
1800 400~1600
2000 500~1600
2200 630~1600
2400 800~1600
